Paired tooling
Die & anvil sets tuned as one system
Pinned male/female sets hold crease depth, Burst-Cut (Zero-Clearance) cuts, and slug-removal features consistent from one install to the next.

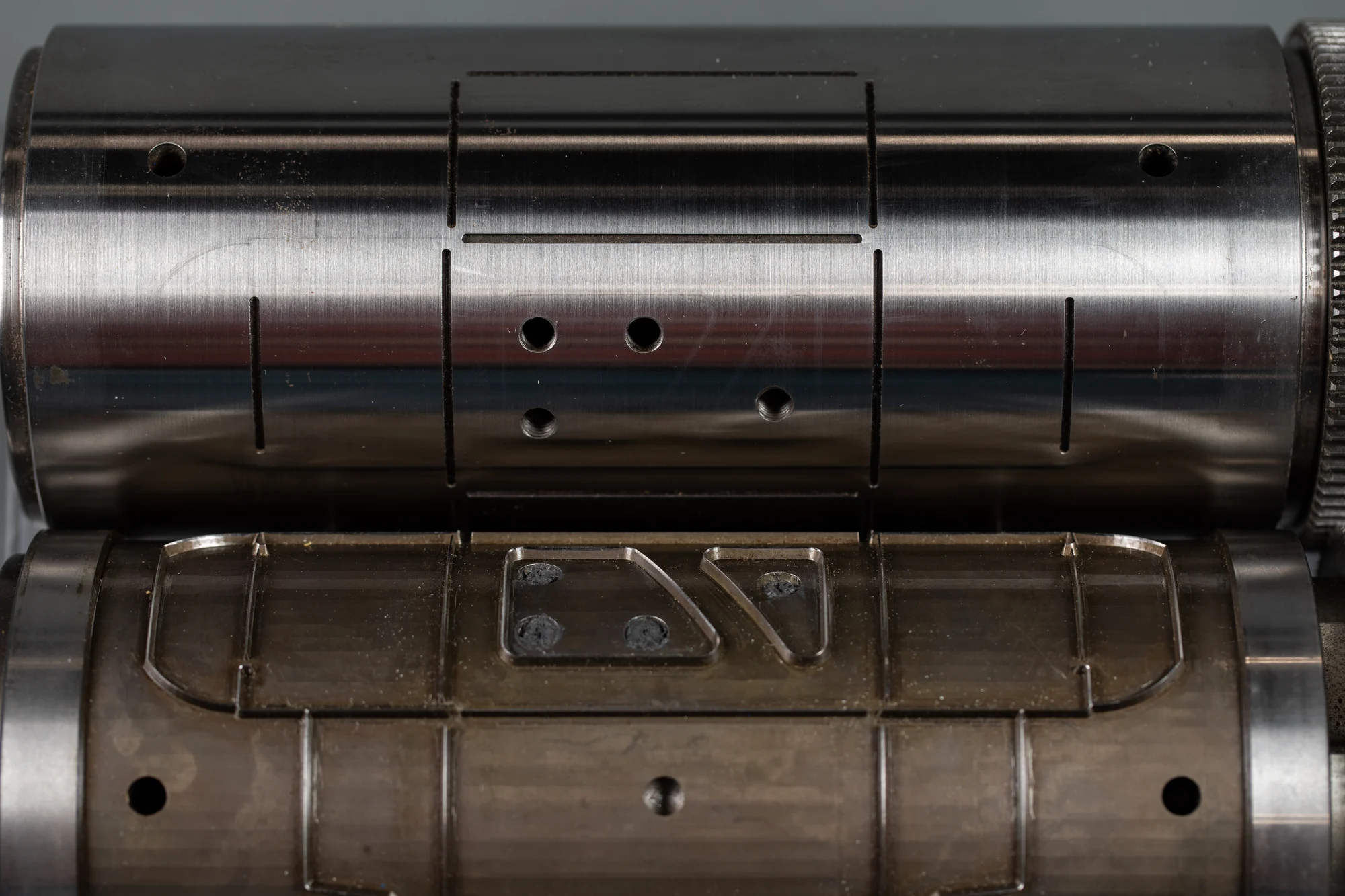

Matched Die & Anvil Set
Each matched set ships as aligned male/female tooling with documented setups for crease depth, Burst-Cut (Zero-Clearance) profiles, and slug-removal paths. Pinning keeps geometry fixed so forming and cutting operations stay consistent across runs.
Key specifications
- Up to 16" diameter die/anvil pairs
- Max length of 60"
- Pin-aligned for repeatable installs
- Male/female profiles for controlled creasing
- Burst-Cut (Zero-Clearance) profiles maximize tool life for crush cut on board stock
- Slug-removal ports and ejector options available
Highlights
- Supports creasing, Burst-Cut (Zero-Clearance) cuts, and slug removal in one matched set
- Alignment pins fix relative position for consistent results
- Built to the same size range as MRD solid rotary dies
Request a tailored quote
Share your substrate specifics, liner, adhesive, and desired run window. We will respond with a recommended steel selection and tolerance stack.
Request a quoteNeed engineering support first? Email midwaycsr@midwayrotary.com with your application details.
FAQ
Frequently asked questions
When should I request a matched set?
When you need controlled creasing with male/female tooling, defined Burst-Cut (Zero-Clearance) cuts, or integrated slug removal.
Can I retrofit existing dies?
Yes. Send the existing tool or inspection data and MRD will pin and qualify a matching anvil to hold the required creasing or Burst-Cut (Zero-Clearance) profiles, including slug-removal provisions.
